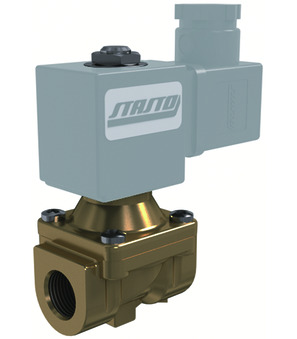

21H8KV120-BDA08223DS

21H8KV120-BDA08223DS

21H8KV120
2/2-way solenoid valve; Pilot-operated; NC; Body Brass; Tube Stainless steel Hard soldered; Seal FKM; Medium temperature -10…+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC 0,1-20bar; Pressure DC 0,1-10bar; Length 50mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.24 Kg
Short Itemnumber: 21H8KV120BDA08223DS
https://www.stasto.rs/web/image/product.template/217320/image_1920?unique=d8b08ef

21H8KV120
2/2-way solenoid valve; pilot-operated; NC; body brass; tube stainless steel hard soldered; seal FKM; medium temperature -10…+120°C; standard coil BDA; connector size 32mm; G 1/2"; DN 12mm; pressure AC 0,1-20bar; pressure DC 0,1-10bar; length 50mm
BDA08223DS
coil type BDA; standard; connector size 32mm; voltage 220-230V/50-60Hz

10.399,00 din. 10399.0 RSD 10.399,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    No spare parts are available for this product.
