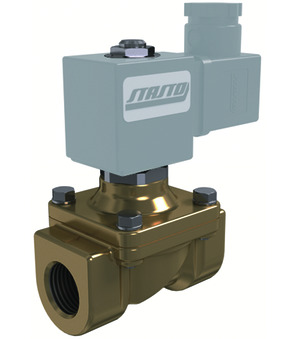

2/2-way solenoid valve 21HT4K0Y160

2/2-way solenoid valve 21HT4K0Y160

2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 1/2"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-2,5bar; Length 70mm; Standard coil BDA

2/2-Wege-Magnetventil Serie 21H..K0Y
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.96 Kg
Short Itemnumber: 21HT4K0Y160
https://www.stasto.rs/web/image/product.template/16900/image_1920?unique=b148115

2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 1/2"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-2,5bar; Length 70mm; Standard coil BDA

11.832,00 din. 11832.0 RSD 11.832,00 din.

cena na zahtev

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 16 mm
Pressure AC 0...14 bar
Length 70 mm
Medium temperature -10...+90 °C
All specifications (7)
Documents
Data sheets, drawings and CAD files
DN 16 mm
Pressure AC 0...14 bar
Length 70 mm
Medium temperature -10...+90 °C
Seal NBR
Female thread G 1/2"
Pressure DC 0...2,5 bar

21HT4K0Y160

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
KTGHT4K0Y16
KTGHT4K0Y16 x 1.0 Pcs
KTGHT4K0Y16
Seal kit; Suitable to series 21HT.K0Y; Dimension 1/2", 3/4"; Seal NBR
