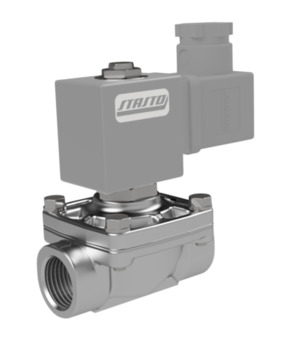

21IH3K1V150-BDA08024CS-C003-31-CV20-6

21IH3K1V150-BDA08024CS-C003-31-CV20-6

21IH3K1V150
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/8"; DN 15mm; Pressure AC 0-14bar; Pressure DC 0-6bar; Medium -10/+120°C; Length 68mm; Standard coil BDA
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

2/2-Wege-Magnetventil Serie 21IH
2/2-Wege-Magnetventil Serie 21IH
Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.72 Kg
Short Itemnumber: 21IH3K1V150BDA08024CSC00331CV206
https://www.stasto.rs/web/image/product.template/194636/image_1920?unique=6988aa4

21IH3K1V150
2/2-way solenoid valve series 21IH; combined operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; connector size 32mm; G 3/8"; DN 15mm; pressure AC 0-14bar; pressure DC 0-6bar; medium -10/+120°C; length 68mm; standard coil BDA
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

34.498,00 din. 34498.0 RSD 34.498,00 din.

cena na zahtev

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Coil
  • Medium temperature
  • Approval
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 3/8"
DN 15 mm
Length 68 mm
Pressure AC 0...14 bar
All specifications (10)
Documents
Data sheets, drawings and CAD files
Female thread G 3/8"
DN 15 mm
Length 68 mm
Pressure AC 0...14 bar
Pressure DC 0...6 bar
Medium temperature -10...+120 °C
Voltage 24VDC
Voltage type DC
Design With moulded PVC-cable (2 m)
Approval CE

21IH3K1V150-BDA08024CS-C003-31-CV20-6

Documents

10 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Danish / Dansk
ZIP

Data Sheets

4

CAD / 3D

3
German / Deutsch
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Greek / Ελληνικά
ZIP

Data Sheets

4

CAD / 3D

3
English
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Spanish / Español
ZIP

Data Sheets

4

CAD / 3D

3
Finnish / Suomi
ZIP

Data Sheets

4

CAD / 3D

3
French / Français
ZIP

Data Sheets

4

CAD / 3D

3
Croatian / hrvatski jezik
ZIP

Data Sheets

4

CAD / 3D

3
Hungarian / Magyar
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Italian / Italiano
ZIP

Data Sheets

4

CAD / 3D

3
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

4

CAD / 3D

3
Dutch / Nederlands
ZIP

Data Sheets

4

CAD / 3D

3
Polish / Język polski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Romanian / română
ZIP

Data Sheets

4

CAD / 3D

3
Slovenian / slovenščina
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Serbian (Latin) / srpski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Swedish / Svenska
ZIP

Data Sheets

4

CAD / 3D

3
2/2-way solenoid valve 21IH3K1V150
21IH3K1V150 x 1.0 Pcs
2/2-way solenoid valve 21IH3K1V150
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/8"; DN 15mm; Pressure AC 0-14bar; Pressure DC 0-6bar; Medium -10/+120°C; Length 68mm; Standard coil BDA
BDA08024CS
BDA08024CS x 1.0 Pcs
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC
C003-31-CV20-6
C003-31-CV20-6 x 1.0 Pcs
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
