21IH8K1V400-S-GDV-GDV14220CS-C003-32-6

21IH8K1V400-S-GDV-GDV14220CS-C003-32-6

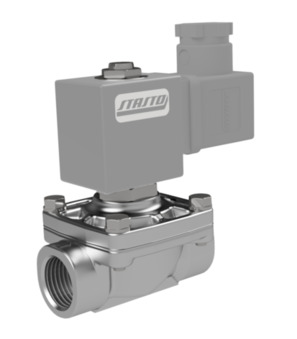

21IH8K1V400-S-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/2"; DN 40mm; Pressure DC 0-7bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDV14220CS
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 220VDC; Approval CE
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

2/2-Wege-Magnetventil Serie 21IH
2/2-Wege-Magnetventil Serie 21IH
Intrastat No.: 84812090
Country of origin: Italy Made in Europe
Weight: 2.44 Kg
Short Itemnumber: 21IH8K1V400SGDVGDV14220CSC003326
https://www.stasto.rs/web/image/product.template/195031/image_1920?unique=6988aa4

21IH8K1V400-S-GDV
2/2-way solenoid valve series 21IH; combined operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; connector size 32mm; G 11/2"; DN 40mm; pressure DC 0-7bar; medium -10/+140°C; length 128mm; standard coil GDV
GDV14220CS
coil type GDV/GDH; for higher pressures/temperatures; connector size 32mm; voltage 220VDC; approval CE
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

111.778,00 din. 111778.0 RSD 111.778,00 din.

cena na zahtev

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Coil
  • Medium temperature
  • Approval
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1 1/2"
DN 40 mm
Length 128 mm
Pressure DC 0...7 bar
All specifications (9)
Documents
Data sheets, drawings and CAD files
Female thread G 1 1/2"
DN 40 mm
Length 128 mm
Pressure DC 0...7 bar
Medium temperature -10...+140 °C
Voltage 220VDC
Voltage type DC
Design Standard
Approval CE
