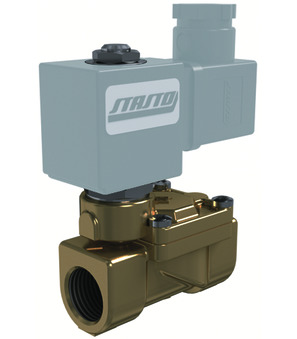

2/2-way solenoid valve 21W3KB190-BDA08024CS-C003-32-6

Price:

19.576,00 din.
2/2-way solenoid valve Series 21W, 21WA Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series 21W, 21WA
  6. 21W3KB190-BDA08024CS-C003-32-6
2/2-way solenoid valve 21W3KB190-BDA08024CS-C003-32-6
2/2-way solenoid valve 21W3KB190-BDV08024CY-C003-32-6
2/2-way solenoid valve 21W3KB190-BDV08024CY-C003-32-6
20.339,00 din.
20.339,00 din.
2/2-way solenoid valve 21W3KB190-BDA08024CS-P992364-C003-32-6
2/2-way solenoid valve 21W3KB190-BDA08024CS-P992364-C003-32-6
27.800,00 din.
27.800,00 din.

2/2-way solenoid valve 21W3KB190-BDA08024CS-C003-32-6

21W3KB190
2/2-way solenoid valve Series 21W, 21WA; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 3/4"; DN 19mm; Pressure AC/DC 0,2-16bar; Length 104mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.72 Kg
Short Itemnumber:21W3KB190BDA08024CSC003326
https://www.stasto.rs/web/image/product.template/181615/image_1920?unique=eb38ccc

21W3KB190
2/2-way solenoid valve series 21W, 21WA; pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 3/4"; DN 19mm; pressure AC/DC 0,2-16bar; length 104mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

19.576,00 din. 19576.0 RSD 19.576,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 19 mm
Length 104 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC/DC 0,2...16 bar
materials
Seal NBR
characteristics
Coil BDA
Medium temperature -10...+90 °C
Approval CE

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_2/2-way solenoid valve Series 21W, 21WA_EN.pdf
Download
Assembly and Operating Instructions
1
Assembly and operating instructions_2/2-way solenoid valves - pilot operated_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_2/2-way solenoid valves - pilot operated_EN.pdf
Download

ZIP
Datové listy
1
Datový list_2/2 cestný elektromagnetický ventil série 21W, 21WA_CS.pdf
Download
Montážní a provozní návody
1
Návod k montáži a obsluze_2/2-cestné elektromagnetické ventily - nepřímo řízené_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_2/2-cestné elektromagnetické ventily - nepřímo řízené_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_2/2-vejs magnetventil Serie 21W, 21WA_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_2/2-Wege-Magnetventil Serie 21W, 21WA_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montage- und Betriebsanleitung_2/2-Wege Magnetventile - vorgesteuert_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_2/2-Wege Magnetventile - vorgesteuert_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Ηλεκτρομαγνητική βαλβίδα 2/2 οδών Σειρά 21W, 21WA_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula solenoide de 2/2 vías Serie 21W, 21WA_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_2/2-tie magneettiventtiili Sarja 21W, 21WA_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Électrovanne 2/2 voies Série 21W, 21WA_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_2/2-putni elektromagnetski ventil Serija 21W, 21WA_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_2/2-es mágnesszelep sorozat 21W, 21WA_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Összeszerelési és kezelési útmutató_2/2-es elektromos vezérlésű útszelepek - elővezérelt_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_2/2-es elektromos vezérlésű útszelepek - elővezérelt_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Elettrovalvola 2/2 vie Serie 21W, 21WA_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_2/2-veis magnetventil Serie 21W, 21WA_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_2/2-weg magneetventiel Serie 21W, 21WA_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_2/2-drogowy zawór elektromagnetyczny Seria 21W, 21WA_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu i obsługi_2/2-drogowe zawory elektromagnetyczne - sterowanie pośrednie_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_2/2-drogowe zawory elektromagnetyczne - sterowanie pośrednie_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă electromagnetică cu 2/2 căi serie 21W, 21WA_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_2/2-potni magnetni ventil serija 21W, 21WA_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo in uporabo_2/2-potni magnetni ventili - predkrmiljeni_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_2/2-potni magnetni ventili - predkrmiljeni_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_2/2-kraki elektromagnetni ventil serije 21W, 21WA_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu i upotrebu_2/2 elektromagnetni ventili - servo (indirektno) upravljani_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_2/2 elektromagnetni ventili - servo (indirektno) upravljani_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_2/2-vägs magnetventil Serie 21W, 21WA_SV.pdf
Download
No spare parts are available for this product.
