2/2-way solenoid valve 21W3KB190-MR-BDA08223DS-C003-32-LV-1

Price:

22.522,00 din.
2/2-way solenoid valve Series 21W-MR Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series 21W-MR
  6. 21W3KB190-MR-BDA08223DS-C003-32-LV-1

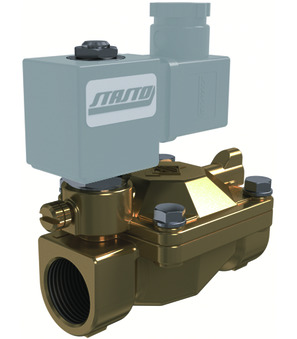

2/2-way solenoid valve 21W3KB190-MR-BDA08223DS-C003-32-LV-1
2/2-way solenoid valve 21W3KB190-MR-BDA08223DS-C003-31-CV20-6
2/2-way solenoid valve 21W3KB190-MR-BDA08223DS-C003-31-CV20-6
23.064,00 din.
23.064,00 din.
2/2-way solenoid valve 21W4KB250-MR
2/2-way solenoid valve 21W4KB250-MR
20.096,00 din.
20.096,00 din.

2/2-way solenoid valve 21W3KB190-MR-BDA08223DS-C003-32-LV-1

21W3KB190-MR
2/2-way solenoid valve Series 21W-MR; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; With adjustable closing delay; Manual operation; Standard coil BDA; Connector size 32mm; G 3/4"; DN 19mm; Pressure AC/DC 0,2-16bar; Length 104mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.63 Kg
Short Itemnumber:21W3KB190MRBDA08223DSC00332LV1
https://www.stasto.rs/web/image/product.template/192226/image_1920?unique=42d53b8

21W3KB190-MR
2/2-way solenoid valve series 21W-MR; pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; with adjustable closing delay; manual operation; standard coil BDA; connector size 32mm; G 3/4"; DN 19mm; pressure AC/DC 0,2-16bar; length 104mm
BDA08223DS
coil type BDA; standard; connector size 32mm; voltage 220-230V/50-60Hz
C003-32-LV-1
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 230VAC/DC

22.522,00 din. 22522.0 RSD 22.522,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 19 mm
Length 104 mm
Designs
Connector size 32 mm
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 220-230V/50-60Hz
Voltage type AC
pressure
Pressure AC/DC 0,2...16 bar
materials
Seal NBR
characteristics
Coil BDA
Medium temperature -10...+90 °C
Approval CE
