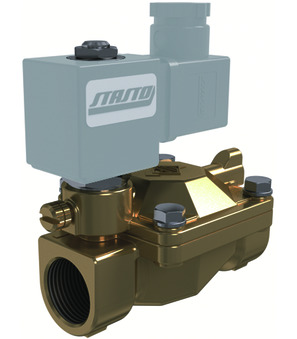

2/2-way solenoid valve 21W4KB250-MR-Y224VDC-2

Price:

39.946,00 din.
2/2-way solenoid valve Series 21W-MR Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series 21W-MR
  6. 21W4KB250-MR-Y224VDC-2
2/2-way solenoid valve 21W4KB250-MR-Y224VDC-2
2/2-way solenoid valve 21W4KB250-MR
2/2-way solenoid valve 21W4KB250-MR
20.096,00 din.
20.096,00 din.
2/2-way solenoid valve 21W4KB250-MR-BDA08012CS-C003-32-6
2/2-way solenoid valve 21W4KB250-MR-BDA08012CS-C003-32-6
23.077,00 din.
23.077,00 din.

2/2-way solenoid valve 21W4KB250-MR-Y224VDC-2

21W4KB250-MR
2/2-way solenoid valve series 21W-MR; pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; with adjustable closing delay; manual operation; standard coil BDA; connector size 32mm; G 1"; DN 25mm; pressure AC/DC 0,2-16bar; length 104mm
Y224VDC-2
mounted coil; coil type Y2, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; cable length 3 m; voltage 24VDC; medium temperature max. 80°C

Intrastat No.: 84812090
Country of origin: Hungary
Weight: 1.575 Kg
Short Itemnumber:21W4KB250MRY224VDC2
https://www.stasto.rs/web/image/product.template/223461/image_1920?unique=9d69840

21W4KB250-MR
2/2-way solenoid valve series 21W-MR; pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; with adjustable closing delay; manual operation; standard coil BDA; connector size 32mm; G 1"; DN 25mm; pressure AC/DC 0,2-16bar; length 104mm
Y224VDC-2
mounted coil; coil type Y2, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; cable length 3 m; voltage 24VDC; medium temperature max. 80°C

39.946,00 din. 39946.0 RSD 39.946,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1"
DN 25 mm
Length 104 mm
Designs
Connector size 32 mm
design
Design ATEX
pressure
Pressure AC/DC 0,2...16 bar
materials
Seal NBR
characteristics
Coil BDA
Medium temperature -10...+90 °C
