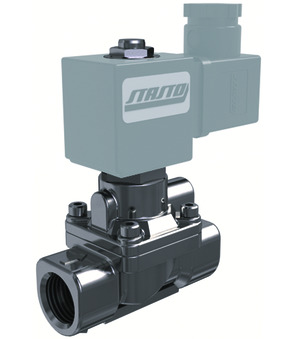

21X3KV190-BDA08024CS-C003-31-CV20-6
21X3KV190
2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 3/4"; DN 19mm; Pressure AC/DC 0,1-16bar; Length 104mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
Country of origin: Italy
Weight: 1.35 Kg
Short Itemnumber: 21X3KV190BDA08024CSC00331CV206
21X3KV190
2/2-way solenoid valve series 21X; pilot-operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 3/4"; DN 19mm; pressure AC/DC 0,1-16bar; length 104mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC
