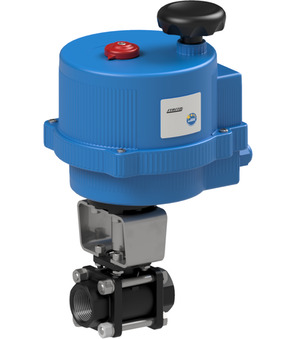

Ball valve with electrical actuator 8E004002-1/4"

Ball valve with electrical actuator 8E004002-1/4"

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1/4"; DN 8mm; Pressure range 0-64bar; Length 57mm; Operating time 10s; Voltage 24VAC/DC

Kugelhahn mit Elektroantrieb Serie 8E004
Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.803 Kg
Short Itemnumber: 8E00400214
https://www.stasto.rs/web/image/product.template/76072/image_1920?unique=f798bc4

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1/4"; DN 8mm; Pressure range 0-64bar; Length 57mm; Operating time 10s; Voltage 24VAC/DC

58.304,00 din. 58304.0 RSD 58.304,00 din.

cena na zahtev

excl. tax
  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread RP 1/4"
DN 8 mm
Length 57 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
Female thread RP 1/4"
DN 8 mm
Length 57 mm
Operating time 10 s
Voltage 24VAC/DC

8E004002-1/4"

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1

CAD / 3D

1
German / Deutsch
ZIP

Declarations of Conformity

1

CAD / 3D

1
English
ZIP

Declarations of Conformity

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1

CAD / 3D

1
Polish / Język polski
ZIP

Declarations of Conformity

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1

CAD / 3D

1
Ball valve made of steel 713000-1/4"
713000-1/4" x 1.0 Pcs
Ball valve made of steel 713000-1/4"
Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0-64bar; Length 57mm
Electrical actuator VB015-L-24
VB015-L-24 x 1.0 Pcs
Electrical actuator VB015-L-24
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65
RI3021 x 1.0 Pcs
RI3021
Mounting bracket; F03; 11-5
