Flanged ball valve with electrical actuator 8E007004-150

Price:

389.454,00 din.
Flanged ball valve with electrical actuator Series 8E007 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - electrically operated
  5. Flanged ball valve with electrical actuator Series 8E007
  6. 8E007004-150

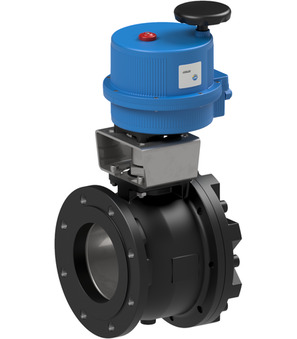

Flanged ball valve with electrical actuator 8E007004-150
Flanged ball valve with electrical actuator 8E007002-150
Flanged ball valve with electrical actuator 8E007002-150
379.913,00 din.
379.913,00 din.
Flanged ball valve with electrical actuator 8E054002-15
Flanged ball valve with electrical actuator 8E054002-15
81.216,00 din.
81.216,00 din.

Flanged ball valve with electrical actuator 8E007004-150

Flanged ball valve with electrical actuator Series 8E007; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 150mm; Pressure range 0-16bar; Length 232mm; Operating time 50s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 70.33 Kg
Short Itemnumber:8E007004150
https://www.stasto.rs/web/image/product.template/76125/image_1920?unique=e5e4a60

Flanged ball valve with electrical actuator Series 8E007; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 150mm; Pressure range 0-16bar; Length 232mm; Operating time 50s; Voltage 100-240VAC

389.454,00 din. 389454.0 RSD 389.454,00 din.

cena na zahtev

  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 150 mm
Length 232 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...16 bar
characteristics
Actuator VB350H
Operating time 50 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with electrical actuator Series 8E007_EN.pdf
Download
CAD / 3D
1
CADSTEP_8E007004150.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s elektropohonem série 8E007_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med elektrisk aktuator Serie 8E007_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Elektroantrieb Serie 8E007_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με φλάντζες με ηλεκτρικό ενεργοποιητή Σειρά 8E007_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador eléctrico Serie 8E007_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili sähkökäytöllä Sarja 8E007_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur électrique Série 8E007_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s električnim pogonom Serija 8E007_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett karimás gömbcsap sorozat 8E007_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore elettrico Serie 8E007_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenskuleventil med elektrisk aktuator Serie 8E007_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met elektrische aandrijving Serie 8E007_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem elektrycznym Seria 8E007_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator electric serie 8E007_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa z električnim pogonom serija 8E007_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom sa električnim aktuatorom serije 8E007_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med elektriskt ställdon Serie 8E007_SV.pdf
Download
Flanged ball valve 722000-150
722000-150 x 1.0
Flanged ball valve 722000-150
Flanged ball valve Series 722000; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Length 232mm
Add to Cart
Electrical actuator VB350-H
VB350-H x 1.0
Electrical actuator VB350-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 350Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 100-240VAC; Protection class IP67
Add to Cart
