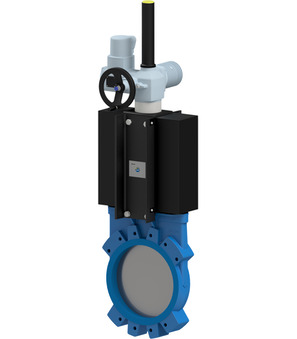

Knife gate valve with electric actuator A1EM2H2-5-300-B-01
Knife gate valve with electric actuator; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Input signal 4-20mA; Outlet signal 4-20mA; Medium temperature -20...+90°C; DN 300mm; Length 70mm; Pressure range 0…6bar; Actuator AUMA
Country of origin: Spain
Short Itemnumber: A1EM2H25300B01
knife gate valve with electric actuator; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; voltage 400V/3/50Hz; input signal 4-20mA; outlet signal 4-20mA; medium temperature -20...+90°C; DN 300mm; length 70mm; pressure range 0…6bar; actuator AUMA
