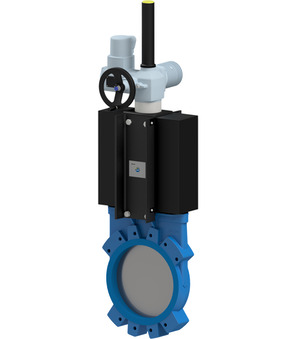

Knife gate valve with electric actuator A1EM2HS2-5-50-B-01
knife gate valve with electric actuator series A1EM2H2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 316L; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 50mm; length 40mm; pressure range 0…10bar; actuator AUMA SA07.2
Country of origin: Spain
Weight: 0.0 Kg
Short Itemnumber: A1EM2HS2550B01
knife gate valve with electric actuator series A1EM2H2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 316L; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 50mm; length 40mm; pressure range 0…10bar; actuator AUMA SA07.2
