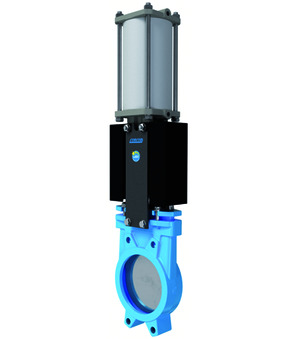

A1N1H1-B-150-PIK
knife gate valve with double acting actuator series A1N-PIB; wafer type; housing cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; metal sealing; packing PTFE-synthetic; nominal flange pressure PN10; unidirectional sealed; control pressure 6...10bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 150mm; length 60mm; pressure range 0…10bar; protection plates stainless steel
Country of origin: Spain
Short Itemnumber: A1N1H1B150PIK
knife gate valve with double acting actuator series A1N-PIB; wafer type; housing cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; metal sealing; packing PTFE-synthetic; nominal flange pressure PN10; unidirectional sealed; control pressure 6...10bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 150mm; length 60mm; pressure range 0…10bar; protection plates stainless steel
| dimension | |
|---|---|
| DN | 150 mm |
| Length | 60 mm |
| pressure | |
| Pressure range | 0...10 bar, 0...8 bar |
