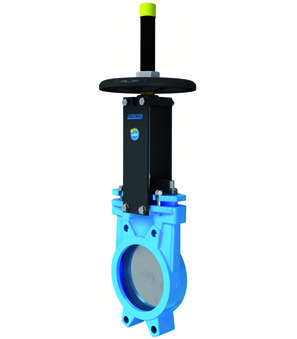

Knife gate valve with handwheel; Wafer type; Rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Coating 250 μm; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 80mm; Length 50mm; Pressure range 0-10bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 10.63 Kg
Short Itemnumber: A1V2H2580B01
Country of origin: Spain
Weight: 10.63 Kg
Short Itemnumber: A1V2H2580B01
knife gate valve with handwheel; wafer type; rising stem; body ductile iron EN-GJS-500-7; gate AISI 304; coating 250 μm; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90 °C; DN 80mm; length 50mm; pressure range 0-10bar
Technical specifications
| Pressure range | 0-10bar |
|---|---|
| Brand | STASTO |
| Pressure range | 0-10bar |
| Brand | STASTO |
No spare parts are available for this product.
