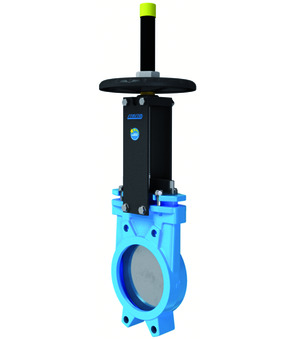

Knife gate valve with handwheel A1V2HS2-5-250-B

Knife gate valve with handwheel A1V2HS2-5-250-B

Knife gate valve with handwheel Series A1V2HS2-5-B; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 250mm; Length 70mm; Pressure range 0...10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 41.55 Kg
Short Itemnumber: A1V2HS25250B
https://www.stasto.rs/web/image/product.template/144780/image_1920?unique=1e3edc9

knife gate valve with handwheel series A1V2HS2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 250mm; length 70mm; pressure range 0...10bar

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 250 mm
Length 70 mm
Pressure range 0...10 bar
DN 250 mm
Length 70 mm
No spare parts are available for this product.
