A1V2I2-5-200-PI-MSU03

Price:

205.214,00 din.
Knife gate valve with handwheel Series A1V-PI Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Knife gate valve
  5. Knife gate valve with handwheel Series A1V-PI
  6. A1V2I2-5-200-PI-MSU03
A1V2I2-5-200-PI-MSU03
A1V2I2-5-200-PI-IG5401
A1V2I2-5-200-PI-IG5401
200.349,00 din.
200.349,00 din.
Knife gate valve with handwheel A1V2I2-5-250-PI
Knife gate valve with handwheel A1V2I2-5-250-PI
249.194,00 din.
249.194,00 din.

A1V2I2-5-200-PI-MSU03

A1V2I2-5-200-PI
Plattenschieber mit Handrad Serie A1V-PI; Zwischenflanschausführung; steigende Spindel; Gehäuse 1.4408; Schieberplatte 1.4401; weichdichtend EPDM; Packung PTFE-synthetisch/EPDM; Flanschnenndruck PN10; einseitig dichtend; Mediumstemperatur -5...+90°C; vorbereitet für 2 induktive Endlagenschalter MSU03, MSU04, MSU05; DN 200mm; Einbaulänge 60mm; Druckbereich 0...10bar
MSU03
Electrical position indication Series MSU; Suitable for Knife gate valve; Mounted inductive proximity switch, 10...30VDC (1 Pieces); Cable length 2m

Intrastat No.: 84818063
Country of origin: Spain
Weight: 9.9 Kg
Short Itemnumber:A1V2I25200PIMSU03
https://www.stasto.rs/web/image/product.template/212848/image_1920?unique=b9bbba7

A1V2I2-5-200-PI

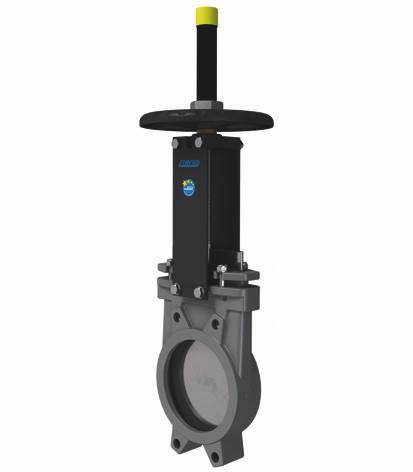

knife gate valve with handwheel series A1V-PI; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 200mm; length 60mm; pressure range 0...10bar
MSU03
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 10...30VDC (1 pieces); cable length 2m

205.214,00 din. 205214.0 RSD 205.214,00 din.

cena na zahtev

  • DN
  • Length
  • Cable length
  • Function
  • Voltage
  • Pressure range
  • Switch design
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
DN 200 mm
Length 60 mm
Cable length 2m
function
Function NO PNP
Electrical key figures
Voltage 10-30VDC
pressure
Pressure range 0...10 bar
characteristics
Switch design Inductive proximity switch (1 Pieces)
Medium temperature -5...+90 °C
