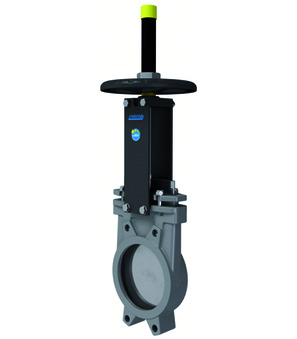

Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 500mm; Length 110mm; Pressure range 0...4bar
Country of origin: Spain
Weight: 192.0 Kg
Short Itemnumber: A1V2I25500
knife gate valve with handwheel series A1V; wafer type; rising stem; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 500mm; length 110mm; pressure range 0...4bar
Technical specifications
| Pressure range | 0...4 bar |
|---|---|
| DN | 500 mm |
| Length | 110 mm |
| Medium temperature | -5...+90 °C |
| Pressure range | 0...4 bar |
| DN | 500 mm |
| Length | 110 mm |
| Medium temperature | -5...+90 °C |
| Brand | STASTO |
A1V2I2-5-500
