A1V2I3-5V-150-PI
A1V2I3-5V-150-B01
A1V2I3-5V-150-B01
999.999,00 din.
999.999,00 din.
A1V2I3-5V-200
A1V2I3-5V-200
999.999,00 din.
999.999,00 din.

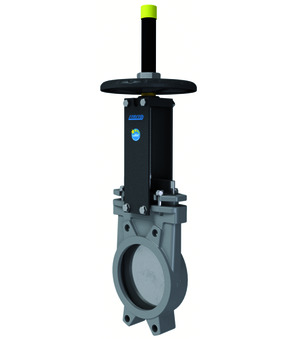

A1V2I3-5V-150-PI

Knife gate valve with handwheel; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed FKM; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature 0..+180 °C; Prepared for 2 inductive limit switches M18; DN 150mm; Length 60mm; Pressure range 0-10bar

Intrastat No.: 84818063
Country of origin: Spain
Weight: 15.1 Kg
Short Itemnumber:A1V2I35V150PI
https://www.stasto.rs/web/image/product.template/149989/image_1920?unique=eaa6a45

knife gate valve with handwheel; wafer type; rising stem; body AISI 316; gate AISI 316; soft sealed FKM; packing PTFE-synthetic/FKM; nominal flange pressure PN10; unidirectional sealed; medium temperature 0..+180 °C; prepared for 2 inductive limit switches M18; DN 150mm; length 60mm; pressure range 0-10bar

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    No spare parts are available for this product.
    ​
