A5V2H5-5N-250-B

A5V2H5-5N-250-B

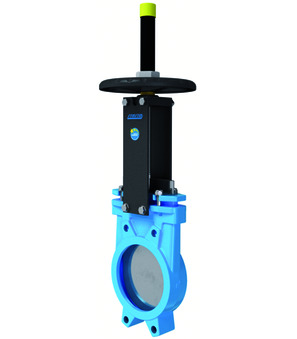

Knife gate valve with handwheel; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 250mm; Length 70mm; Pressure range 0-10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 41.0 Kg
Short Itemnumber: A5V2H55N250B
https://www.stasto.rs/web/image/product.template/160898/image_1920?unique=e5553fc

knife gate valve with handwheel; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90 °C; DN 250mm; length 70mm; pressure range 0-10bar

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    No spare parts are available for this product.
