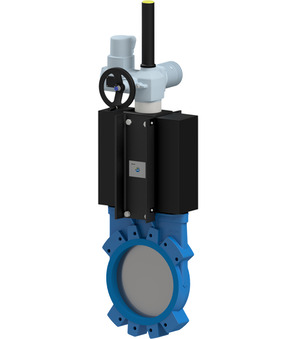

Knife gate valve with electric actuator AB1EM2H2-5-300-B

Knife gate valve with electric actuator AB1EM2H2-5-300-B

Knife gate valve with electric actuator Series AB1EM2H2-5-B; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 300mm; Length 70mm; Pressure range 0…6bar; Actuator AUMA SA07.6

Intrastat No.: 84818061
Country of origin: Spain
Weight: 72.0 Kg
Short Itemnumber: AB1EM2H25300B
https://www.stasto.rs/web/image/product.template/179926/image_1920?unique=6691d74

knife gate valve with electric actuator series AB1EM2H2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 300mm; length 70mm; pressure range 0…6bar; actuator AUMA SA07.6

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Operating pressure
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0…6bar
DN 300 mm
Length 70 mm
Operating pressure 0...6 bar
Pressure range 0…6bar
DN 300 mm
Length 70 mm
Operating pressure 0...6 bar
No spare parts are available for this product.
