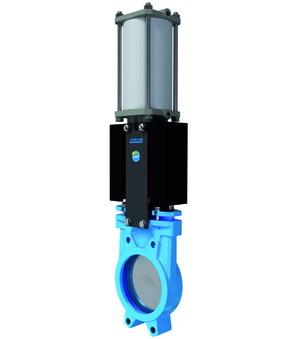

Knife gate valve with double acting actuator AB1N2H2-5-200-BK

Knife gate valve with double acting actuator AB1N2H2-5-200-BK

knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; Stainless steel mudguards;; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0...7bar

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Short Itemnumber: AB1N2H25200BK
https://www.stasto.rs/web/image/product.template/222328/image_1920?unique=691a60b

knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; Stainless steel mudguards;; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0...7bar

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...7 bar
DN 200 mm
Length 60 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...7 bar
DN 200 mm
Length 60 mm

AB1N2H2-5-200-BK

Documents

1 Documents 2 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
No spare parts are available for this product.
