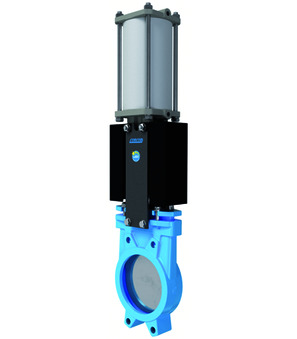

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 450mm; Length 106mm; Pressure range 0...3bar
Country of origin: Spain
Weight: 32.1 Kg
Short Itemnumber: AB1N2H25450B
Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 450mm; Length 106mm; Pressure range 0...3bar
Technical specifications
| Pressure range | 0...3 bar |
|---|---|
| DN | 450 mm |
| Length | 106 mm |
| Pressure range | 0...3 bar |
| DN | 450 mm |
| Length | 106 mm |
AB1N2H2-5-450-B
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie AB1N · DE
Data sheet 15,2 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Knife gate valve with double acting actuator Series AB1N · EN
Data sheet 11,2 MB Updated 13/06/2026
