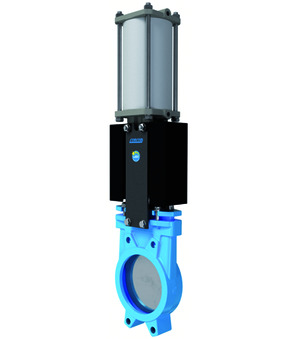

Knife gate valve with double acting actuator AB1N2H5-5-125-B

Knife gate valve with double acting actuator AB1N2H5-5-125-B

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 125mm; Length 50mm; Pressure range 0...10bar

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Weight: 16.8 Kg
Short Itemnumber: AB1N2H55125B
https://www.stasto.rs/web/image/product.template/111124/image_1920?unique=b474c66

knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 125mm; length 50mm; pressure range 0...10bar

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 125 mm
Length 50 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 125 mm
Length 50 mm

AB1N2H5-5-125-B

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
No spare parts are available for this product.
