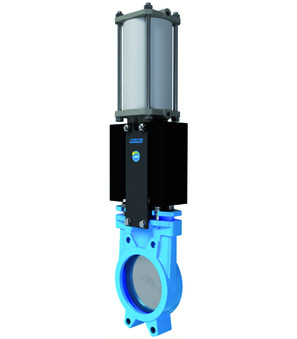

Knife gate valve with double acting actuator AB1N2H5-5-80-B
Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 80mm; Length 50mm; Pressure range 0...10bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 10.1 Kg
Short Itemnumber: AB1N2H5580B
Country of origin: Spain
Weight: 10.1 Kg
Short Itemnumber: AB1N2H5580B
knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 80mm; length 50mm; pressure range 0...10bar
