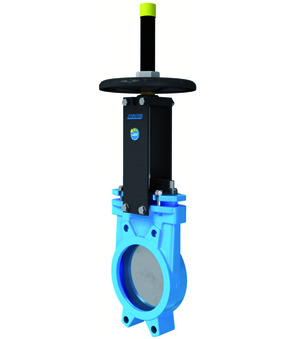

Knife gate valve with handwheel AB1VN2H2-5-250-B

Knife gate valve with handwheel AB1VN2H2-5-250-B

Knife gate valve with handwheel Series AB1V; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90°C; DN 250mm; Length 70mm; Pressure range 0…6bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 40.0 Kg
Short Itemnumber: AB1VN2H25250B
https://www.stasto.rs/web/image/product.template/179907/image_1920?unique=33a0594

knife gate valve with handwheel series AB1V; wafer type; non rising stem; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90°C; DN 250mm; length 70mm; pressure range 0…6bar

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 250 mm
Length 70 mm
Pressure range 0...10 bar
DN 250 mm
Length 70 mm
No spare parts are available for this product.
