Flanged ball valve with electrical actuator BA052-15-0H

Price:

84.330,00 din.
Flanged ball valve with electrical actuator Series 8E005 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - electrically operated
  5. Flanged ball valve with electrical actuator Series 8E005
  6. BA052-15-0H
Flanged ball valve with electrical actuator BA052-15-0H
Flanged ball valve with electrical actuator 8E005004-15
Flanged ball valve with electrical actuator 8E005004-15
83.308,00 din.
83.308,00 din.
Flanged ball valve with electrical actuator 8E005002-20
Flanged ball valve with electrical actuator 8E005002-20
79.571,00 din.
79.571,00 din.

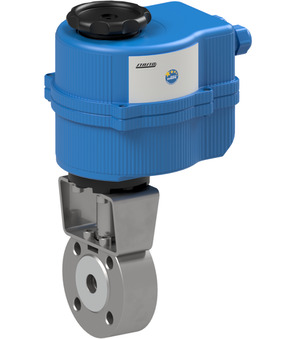

Flanged ball valve with electrical actuator BA052-15-0H

Flanged ball valve with electrical actuator Series BA052; Flange PN40; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 15mm; Pressure range 0-40bar; Length 35mm; Operating time 10s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.19 Kg
Short Itemnumber:BA052150H
https://www.stasto.rs/web/image/product.template/179680/image_1920?unique=e5e4a60

flanged ball valve with electrical actuator series BA052; flange PN40; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; DN 15mm; pressure range 0-40bar; length 35mm; operating time 10s; voltage 100-240VAC

84.330,00 din. 84330.0 RSD 84.330,00 din.

cena na zahtev

  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 15 mm
Length 35 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...40 bar
characteristics
Actuator VB015H
Operating time 10 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with electrical actuator Series 8E005_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s elektropohonem série 8E005_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med elektrisk aktuator Serie 8E005_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Elektroantrieb Serie 8E005_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με φλάντζες με ηλεκτρικό ενεργοποιητή Σειρά 8E005_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador eléctrico Serie 8E005_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili sähkökäytöllä Sarja 8E005_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur électrique Série 8E005_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s električnim pogonom Serija 8E005_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett karimás gömbcsap sorozat 8E005_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore elettrico Serie 8E005_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenskuleventil med elektrisk aktuator Serie 8E005_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met elektrische aandrijving Serie 8E005_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem elektrycznym Seria 8E005_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator electric serie 8E005_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa z električnim pogonom serija 8E005_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom sa električnim aktuatorom serije 8E005_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med elektriskt ställdon Serie 8E005_SV.pdf
Download
Flanged ball valve BA052-15-L
BA052-15-L x 1.0
Flanged ball valve BA052-15-L
Flanged ball valve Series BA052; Flange PN40; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Length 35mm
Add to Cart
Electrical actuator VB015-H
VB015-H x 1.0
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
Add to Cart
