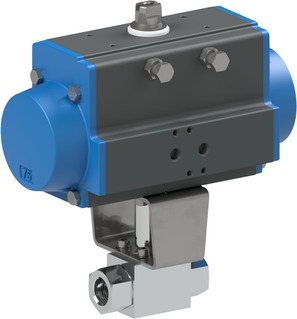

Ball valve with pneumatic actuator BA102-112-D0

Ball valve with pneumatic actuator BA102-112-D0

Ball valve with pneumatic actuator Series BA102; Female thread; Body, Ball 1.4571/1.4404; Seals POM/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 11/2"; Nominal diameter 25mm; Pressure range 0…250bar; Length 130mm; Actuator PAD085

Kugelhahn mit Druckluftdrehantrieb Serie BA102
Kugelhahn mit Druckluftdrehantrieb Serie BA102
Intrastat No.: 84818081
Country of origin: Germany Made in Europe
Weight: 6.85 Kg
Short Itemnumber: BA102112D0
https://www.stasto.rs/web/image/product.template/139670/image_1920?unique=f514644

ball valve with pneumatic actuator series BA102; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 11/2"; nominal diameter 25mm; pressure range 0…250bar; length 130mm; actuator PAD085

112.318,00 din. 112318.0 RSD 112.318,00 din.

cena na zahtev

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...250 bar
DN 25 mm
Length 130 mm
Female thread G 1 1/2"
Documents
Data sheets, drawings and CAD files
Pressure range 0...250 bar
DN 25 mm
Length 130 mm
Female thread G 1 1/2"

BA102-112-D0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
BA102-112-B x 1.0 Pcs
High pressure ball valve BA102-112-B
High pressure ball valve Series BA102; Female thread; Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/FKM; For liquids; Medium temperature -20...+100°C; Square 14mm; G 11/2"; Nominal diameter 25mm; Pressure range 0…250bar; Length 130mm; Flange ISO5211 F05
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
