BA233-16S-D0-ABS51-C001-03-C002-31-LV-2

Price:

63.972,00 din.

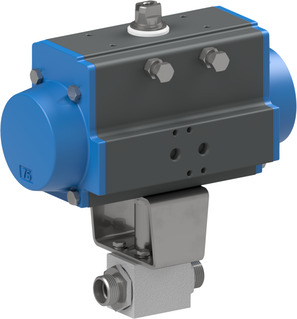

Ball valve with pneumatic actuator Series BA233 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves for high pressure - pneumatically operated
  5. Ball valve with pneumatic actuator Series BA233
  6. BA233-16S-D0-ABS51-C001-03-C002-31-LV-2
BA233-16S-D0-ABS51-C001-03-C002-31-LV-2
BA233-16S-D0-ABS51-C001-03-C002-31-6
BA233-16S-D0-ABS51-C001-03-C002-31-6
63.381,00 din.
63.381,00 din.
BA233-16S-D0-ABS51-C001-03-C002-31-LVCV20-2
BA233-16S-D0-ABS51-C001-03-C002-31-LVCV20-2
64.884,00 din.
64.884,00 din.

BA233-16S-D0-ABS51-C001-03-C002-31-LV-2

BA233-16S-D0
Ball valve with pneumatic actuator Series BA233; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; Connection 16S/M24x1,5; Nominal diameter 13mm; Pressure range 0...500bar; Length 86mm; Actuator PAD075
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.99 Kg
Short Itemnumber:BA23316SD0ABS51C00103C00231LV2
https://www.stasto.rs/web/image/product.template/199742/image_1920?unique=75772c5

BA233-16S-D0
ball valve with pneumatic actuator series BA233; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; connection 16S/M24x1,5; nominal diameter 13mm; pressure range 0...500bar; length 86mm; actuator PAD075
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

63.972,00 din. 63972.0 RSD 63.972,00 din.

cena na zahtev

  • Male thread
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Type
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Male thread M24x1,5
Valve interface Namur 1/4"
DN 13 mm
Length 86 mm
Designs
Connector size 22
Type 16S
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...500 bar
characteristics
Coil C001
Actuator PAD075
