BA233-25S-D0-ABS51-C001-03-C002-31-6

BA233-25S-D0-ABS51-C001-03-C002-31-6

BA233-25S-D0

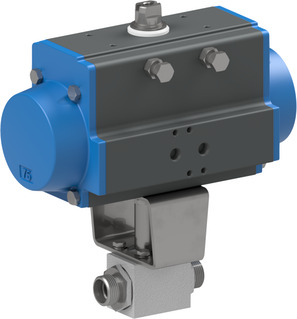

Ball valve with pneumatic actuator Series BA233; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; Connection 25S/M36x2; Nominal diameter 20mm; Pressure range 0...420bar; Length 109mm; Actuator PAD085
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

Kugelhahn mit Druckluftdrehantrieb Serie BA233
Kugelhahn mit Druckluftdrehantrieb Serie BA233
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 6.15 Kg
Short Itemnumber: BA23325SD0ABS51C00103C002316
https://www.stasto.rs/web/image/product.template/199759/image_1920?unique=c3650ed

BA233-25S-D0
ball valve with pneumatic actuator series BA233; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; connection 25S/M36x2; nominal diameter 20mm; pressure range 0...420bar; length 109mm; actuator PAD085
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

72.098,00 din. 72098.0 RSD 72.098,00 din.

cena na zahtev

excl. tax
  • Male thread
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Type
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...420 bar
Male thread M36x2
DN 20 mm
Length 109 mm
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...420 bar
Male thread M36x2
DN 20 mm
Length 109 mm
Type 25S
Voltage 24VDC / 48V/50-60Hz
Design Standard
