BA234-28L-L-03

BA234-28L-L-03

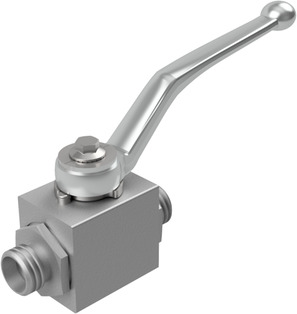

high pressure ball valve; male thread according to ISO 8434-1 (DIN 2353); housing, ball AISI 316Ti/AISI 316L; seals POM/NBR; for hydraulic liquids; medium temperature -30...+100°C; connection 28L/M36x2; nominal diameter 25mm; pressure range 0...350bar; length 108mm; prepared for limit switch

Intrastat No.: 84818081
Country of origin: Germany
Weight: 2.11 Kg
Short Itemnumber: BA23428LL03
https://www.stasto.rs/web/image/product.template/172566/image_1920?unique=94b97ec

high pressure ball valve; male thread according to ISO 8434-1 (DIN 2353); housing, ball AISI 316Ti/AISI 316L; seals POM/NBR; for hydraulic liquids; medium temperature -30...+100°C; connection 28L/M36x2; nominal diameter 25mm; pressure range 0...350bar; length 108mm; prepared for limit switch

73.179,00 din. 73179.0 RSD 73.179,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BA234-28L-L-01
    BA234-28L-L-01 x 1.0
    BA234-28L-L-01
    High pressure ball valve; Male thread According to ISO 8434-1 (DIN 2353); Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C; Connection 28L/M36x2; Nominal diameter 25mm; Pressure range 0...350bar; Length 108mm; Prepared for Limit switch-Construction
    Add to Cart
    IV/00247/21
    IV/00247/21 x 1.0
    IV/00247/21
    Mounting bracket For Limit switch M18; Hole spacing Ball valve 28mm; Stainless steel 3mm
