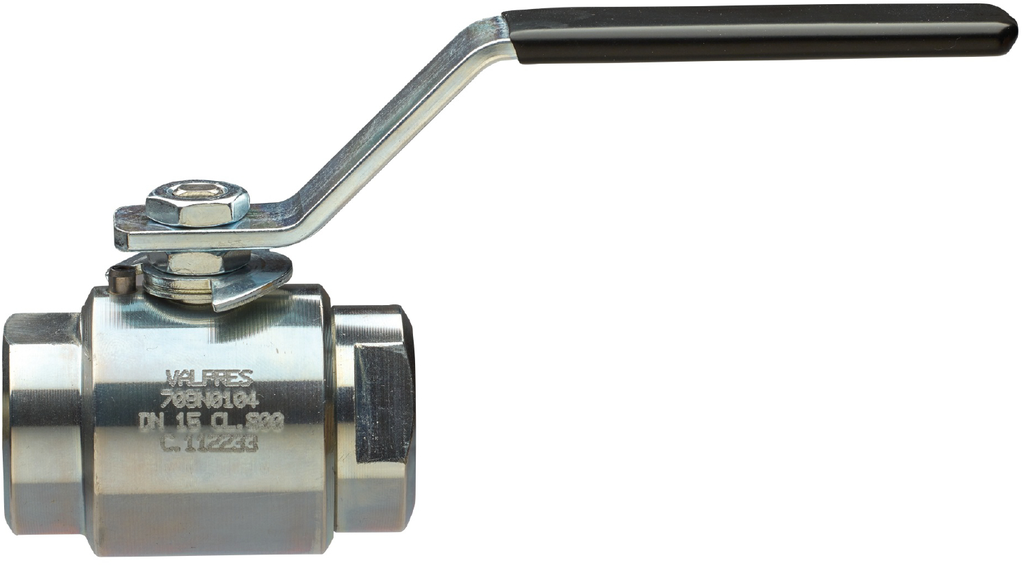

ball valve made of stainless steel BA469-12-LLD-A3C
Stainless steel ball valve Series BA469-LLD-A3C; ATEX II 2 G/D; Fire-Safe; full passage; two-part; Internal thread; Housing, Ball 1.4404; Seals PTFE carbographite-reinforced; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0...138 bar; Connection RP 1/2"; Installation length 75mm; Oil and grease free; Class 800; with shut-off device; incl. Inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Country of origin: Italy
Weight: 0.946 Kg
Short Itemnumber:BA46912LLDA3C
Stainless steel ball valve Series BA469-LLD-A3C; ATEX II 2 G/D; Fire-Safe; full passage; two-part; Internal thread; Housing, Ball 1.4404; Seals PTFE carbographite-reinforced; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0...138 bar; Connection RP 1/2"; Installation length 75mm; Oil and grease free; Class 800; with shut-off device; incl. Inspection certificate EN-10204-3.1; for material, pressure, function and tightness
| dimension | |
|---|---|
| Female thread | RP 1/2" |
| DN | 15 mm |
| Length | 75 mm |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...138 bar |
