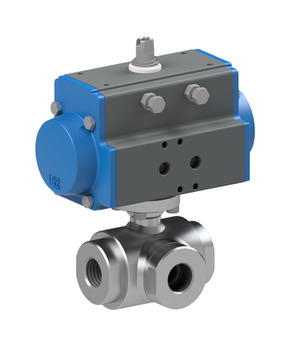

Ball valve with pneumatic actuator BA541-34-S0

Ball valve with pneumatic actuator BA541-34-S0

Ball valve with pneumatic actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 3/4"; Nominal diameter 20mm; Pressure range 0...100bar; Length 92mm; Actuator PAS0855; Ball T

Kugelhahn mit Druckluftdrehantrieb Serie BA541, BA542
Kugelhahn mit Druckluftdrehantrieb Serie BA541, BA542
Kugelhahn mit Druckluftdrehantrieb Serie BA541, BA542
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 5.34 Kg
Short Itemnumber: BA54134S0
https://www.stasto.rs/web/image/product.template/136719/image_1920?unique=5dc8479

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 3/4"; nominal diameter 20mm; pressure range 0...100bar; length 92mm; actuator PAS0855; ball T

93.600,00 din. 93600.0 RSD 93.600,00 din.

cena na zahtev

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...100 bar
DN 20 mm
Length 92 mm
Ball T
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...100 bar
DN 20 mm
Length 92 mm
Ball T
Female thread G 3/4"

BA541-34-S0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of stainless steel BA541-34-B
BA541-34-B x 1.0 Pcs
Ball valve made of stainless steel BA541-34-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 3/4"; Nominal diameter 20mm; Pressure range 0...100bar; Length 92mm; Ball T; Flange ISO5211 F05; Square 14mm
Pneumatic actuator PAS0855
PAS0855 x 1.0 Pcs
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
