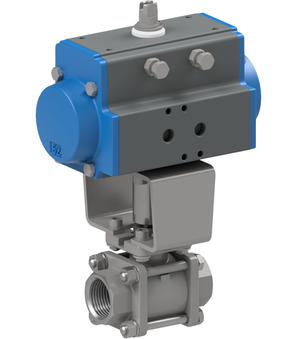

Ball valve with pneumatic actuator BAC1-009-SSTV-D0

Ball valve with pneumatic actuator BAC1-009-SSTV-D0

Ball valve with pneumatic actuator Series BAC1; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.19 Kg
Short Itemnumber: BAC1009SSTVD0
https://www.stasto.rs/web/image/product.template/86636/image_1920?unique=bbc91d7

Ball valve with pneumatic actuator Series BAC1; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; Actuator PAD075

84.882,00 din. 84882.0 RSD 84.882,00 din.

cena na zahtev

  • Diameter
  • Connection
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Max. inlet pressure
  • Filter element
  • Flow rate at 6.3bar/Δp=1bar

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 2"
DN 50 mm
Length 136 mm
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD075
