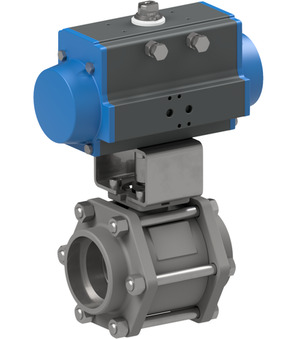

Ball valve with pneumatic actuator BAC5-010-SSTV-D0

Ball valve with pneumatic actuator BAC5-010-SSTV-D0

Ball valve with pneumatic actuator Series BAC5; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085

Kugelhahn mit Druckluftdrehantrieb Serie BAC5
Kugelhahn mit Druckluftdrehantrieb Serie BAC5
Kugelhahn mit Druckluftdrehantrieb Serie BAC5
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 5.14 Kg
Short Itemnumber: BAC5010SSTVD0
https://www.stasto.rs/web/image/product.template/86714/image_1920?unique=87fb56f

Ball valve with pneumatic actuator Series BAC5; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085

128.780,00 din. 128780.0 RSD 128.780,00 din.

cena na zahtev

excl. tax
  • Socket weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 65 mm
Length 153 mm
Socket weld ends 65 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 65 mm
Length 153 mm
Socket weld ends 65 mm

BAC5-010-SSTV-D0

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of stainless steel 711000-65
711000-65 x 1.0 Pcs
Ball valve made of stainless steel 711000-65
Ball valve made of stainless steel Series 711000; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
