Flanged ball valve with pneumatic actuator BAEB-025-UITV-S0

Price:

76.868,00 din.
Flanged ball valve with pneumatic actuator Series BAEB, BAEA Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - pneumatically operated
  5. Flanged ball valve with pneumatic actuator Series BAEB, BAEA
  6. BAEB-025-UITV-S0

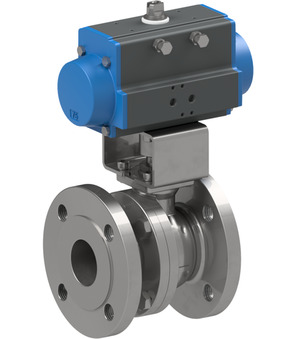

Flanged ball valve with pneumatic actuator BAEB-025-UITV-S0
BAEB-020-UITV-S0-ABS53-C001-22-C002-31-LVCV20-1
BAEB-020-UITV-S0-ABS53-C001-22-C002-31-LVCV20-1
85.011,00 din.
85.011,00 din.
BAEB-025-UITV-S0-ABS53-C001-03-C002-31-6
BAEB-025-UITV-S0-ABS53-C001-03-C002-31-6
93.248,00 din.
93.248,00 din.

Flanged ball valve with pneumatic actuator BAEB-025-UITV-S0

Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 125mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.63 Kg
Short Itemnumber:BAEB025UITVS0
https://www.stasto.rs/web/image/product.template/86904/image_1920?unique=e5e4a60

Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 125mm; Actuator PAS0635

76.868,00 din. 76868.0 RSD 76.868,00 din.

cena na zahtev

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 25 mm
Length 125 mm
Flange PN40
pressure
Pressure range 0...40 bar
characteristics
Actuator PAS0635

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with pneumatic actuator Series BAEB, BAEA_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Flanged ball valve with pneumatic actuator Series BAEB, BAEA_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAEB025UITVS0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s otočným pneumatickým pohonem série BAEB, BAEA_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout - přírubový, s otočným pneumatickým pohonem série BAEB, BAEA_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med pneumatisk drejedrev Serie BAEB, BAEA_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb Serie BAEB, BAEA_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Flanschkugelhahn mit Druckluftdrehantrieb Serie BAEB, BAEA_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Φλαντζωτή σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BAEB, BAEA_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador neumático rotativo Serie BAEB, BAEA_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili paineilmatoimisella kääntötoimilaitteella Sarja BAEB, BAEA_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur pneumatique rotatif Série BAEB, BAEA_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s pneumatskim rotacijskim pogonom Serija BAEB, BAEA_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BAEB, BAEA_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BAEB, BAEA_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore pneumatico rotativo Serie BAEB, BAEA_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenset kuleventil med pneumatisk dreieaktuator Serie BAEB, BAEA_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met pneumatische draaiaandrijving Serie BAEB, BAEA_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BAEB, BAEA_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BAEB, BAEA_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator rotativ pneumatic serie BAEB, BAEA_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BAEB, BAEA_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BAEB, BAEA_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BAEB, BAEA_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BAEB, BAEA_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med pneumatiskt vriddon Serie BAEB, BAEA_SV.pdf
Download
Flanged ball valve 760001-25
760001-25 x 1.0
Flanged ball valve 760001-25
Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 125mm
Add to Cart
Pneumatic actuator PAS0635
PAS0635 x 1.0
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
Add to Cart
