BAMA-025-SSTV-D0-EB0X01

BAMA-025-SSTV-D0-EB0X01

BAMA-025-SSTV-D0

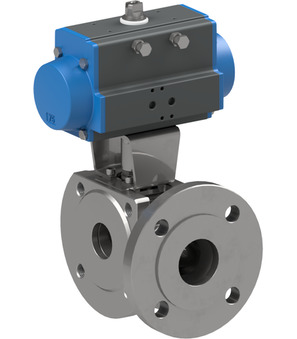

flanged ball valve with pneumatic actuator series BAMA, BAUA; 3-way-type; sealing on two sides; pressure inlet just in front; flange PN16; body, ball AISI 316; seals PTFE/FKM; reduced bore; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; DN ball 20mm; length 46mm; actuator PAD052; ball L
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 1.958 Kg
Short Itemnumber: BAMA025SSTVD0EB0X01
https://www.stasto.rs/web/image/product.template/232779/image_1920?unique=b428625

BAMA-025-SSTV-D0
flanged ball valve with pneumatic actuator series BAMA, BAUA; 3-way-type; sealing on two sides; pressure inlet just in front; flange PN16; body, ball AISI 316; seals PTFE/FKM; reduced bore; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; DN ball 20mm; length 46mm; actuator PAD052; ball L
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

130.883,00 din. 130883.0 RSD 130.883,00 din.

cena na zahtev

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • DN ball
  • Connector size
  • Ball
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 25 mm
Length 46 mm
DN ball 20 mm
Ball L
All specifications (7)
Documents
Data sheets, drawings and CAD files
DN 25 mm
Length 46 mm
DN ball 20 mm
Ball L
Switch type Crouzet 831613
Contact material Silver-nickel
Material of case Plastic

BAMA-025-SSTV-D0-EB0X01

Documents

7 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

Declarations of Conformity

2

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

2

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

2

CAD / 3D

2
English
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

2

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

2

CAD / 3D

2
French / Français
ZIP

Data Sheets

2

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

2

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

2

Declarations of Conformity

2

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

2

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

2

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

2

Declarations of Conformity

2

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

2

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

2

Declarations of Conformity

2

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

2

Declarations of Conformity

2

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

2

CAD / 3D

2
Flanged ball valve with pneumatic actuator BAMA-025-SSTV-D0
BAMA-025-SSTV-D0 x 1.0 Pcs
Flanged ball valve with pneumatic actuator BAMA-025-SSTV-D0
Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 25mm; DN ball 20mm; Length 46mm; Actuator PAD052; Ball L
EB0X01
EB0X01 x 1.0 Pcs
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic
