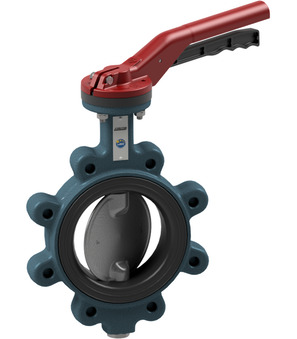

BUL1A-080-DSE-L-3C

BUL1A-080-DSE-L-3C

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0...20bar; Nominal flange pressure ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 30.55 Kg
Short Itemnumber: BUL1A080DSEL3C
https://www.stasto.rs/web/image/product.template/158395/image_1920?unique=f96ddcc

butterfly valve with hand lever; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 80mm; length 46mm; pressure range 0...20bar; nominal flange pressure ANSI150; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUL1A-080-DSE-B-3C x 1.0
    Butterfly valve with bare shaft BUL1A-080-DSE-B-3C
    Butterfly valve with bare shaft Series BUL-B-3C; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 80mm; Length 46mm; Pressure range 0...20bar; Nominal flange pressure ANSI150
    Add to Cart
    HLBU-040100-A
    HLBU-040100-A x 1.0
    HLBU-040100-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
