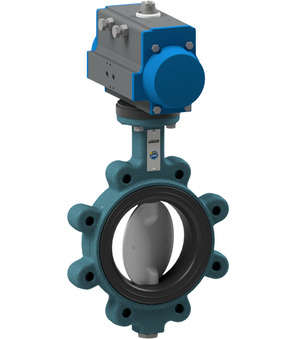

Butterfly valve with pneumatic actuator BULC-200-DSE-S22-A

Name: Butterfly valve with pneumatic actuator BULC-200-DSE-S22-A
Brand: STASTO
SKU: BULC-200-DSE-S22-A
Price: 366259.0 RSD
Availability: InStock

Butterfly valve with pneumatic actuator Series BULC-S ATEX II 2GD Ex h X EPT 14; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Flange PN10; Actuator PAS2005

Intrastat No.: 84818085
Country of origin: Italy

Weight: 84.9 Kg
Short Itemnumber: BULC200DSES22A

butterfly valve with pneumatic actuator series BULC-S ATEX II 2GD Ex h X EPT 14; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; single acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; length 60mm; flange PN10; actuator PAS2005

366.259,00 din. 366259.0 RSD 366.259,00 din.

excl. tax

DN
- 200 mm
Length
- 60 mm
Flange
- PN10
Design
- ATEX
Pressure range
- 0...10 bar
Actuator
- PAS2005
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10 bar
DN	200 mm
Length	60 mm
Flange	PN10

All specifications (6)

Specifications
Spare Parts

Pressure range	0...10 bar
DN	200 mm
Length	60 mm
Flange	PN10
Design	ATEX
Brand	STASTO

BULC-200-DSE-B x 1.0 Pcs

Butterfly valve with bare shaft BULC-200-DSE-B

Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Nominal flange pressure PN10

PAS2005 x 1.0 Pcs

Pneumatic actuator PAS2005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm

APKT001000 x 1.0 Pcs
