Butterfly valve with pneumatic actuator BULC-250-DPE-S22

Price:

368.435,00 din.
Butterfly valve with pneumatic actuator Series BULG-S, BULC-S Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Butterfly valves - pneumatically operated
  5. Butterfly valve with pneumatic actuator Series BULG-S, BULC-S
  6. BULC-250-DPE-S22
Butterfly valve with pneumatic actuator BULC-250-DPE-S22
BULC-200-DPE-S22-ABS54-C001-22-C002-31-LVCV20-1
BULC-200-DPE-S22-ABS54-C001-22-C002-31-LVCV20-1
359.507,00 din.
359.507,00 din.
BULC-250-DPE-S22-ABS54-C001-03-C002-31-6
BULC-250-DPE-S22-ABS54-C001-03-C002-31-6
387.670,00 din.
387.670,00 din.

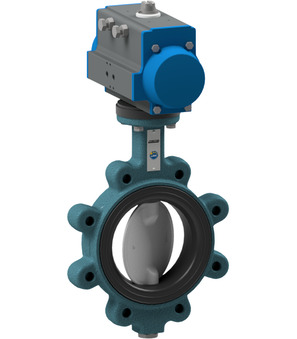

Butterfly valve with pneumatic actuator BULC-250-DPE-S22

Butterfly valve with pneumatic actuator Series BULG-S, BULC-S; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Flange PN10; Disc GGG40 verzinkt; Actuator PAS2005

Intrastat No.: 84818085
Country of origin: Italy
Weight: 91.88 Kg
Short Itemnumber:BULC250DPES22
https://www.stasto.rs/web/image/product.template/88037/image_1920?unique=d4a307e

Butterfly valve with pneumatic actuator Series BULG-S, BULC-S; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Flange PN10; Disc GGG40 verzinkt; Actuator PAS2005

368.435,00 din. 368435.0 RSD 368.435,00 din.

cena na zahtev

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Disc
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us
dimension
DN 250 mm
Length 68 mm
Flange PN10
pressure
Pressure range 0...10 bar
materials
Disc GGG40 Zinc plated
characteristics
Actuator PAS2005
