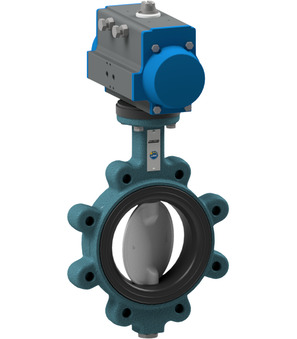

Butterfly valve with pneumatic actuator BULG-040-DSV-S22

Butterfly valve with pneumatic actuator BULG-040-DSV-S22

Butterfly valve with pneumatic actuator Series BULG-S, BULC-S; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 40mm; Length 32mm; Nominal flange pressure 10/16bar; Actuator PAS0855

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.95 Kg
Short Itemnumber: BULG040DSVS22
https://www.stasto.rs/web/image/product.template/140271/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BULG-S, BULC-S; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 40mm; length 32mm; nominal flange pressure 10/16bar; actuator PAS0855

70.758,00 din. 70758.0 RSD 70.758,00 din.

cena na zahtev

  • DN
  • Length
  • Flange
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 40 mm
Length 32 mm
Flange PN10/16
characteristics
Actuator PAS0855
BULG-040-DSV-B x 1.0
Butterfly valve with bare shaft BULG-040-DSV-B
Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 40mm; Length 33mm; Pressure range 0...16bar; Nominal flange pressure 10/16
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
