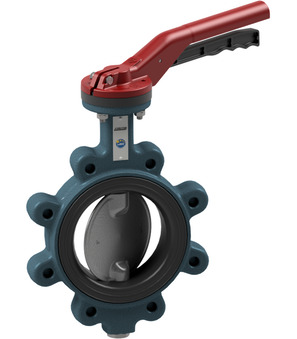

Butterfly valve with hand lever BULG-050-DSV-L
Butterfly valve with hand lever Series BULG-L, BULC-L, BULY-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 50mm; Length 43mm; Pressure range 0...16bar; Flange PN10/16
Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.05 Kg
Short Itemnumber: BULG050DSVL
Country of origin: Italy
Weight: 4.05 Kg
Short Itemnumber: BULG050DSVL
butterfly valve with hand lever series BULG-L, BULC-L, BULY-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 50mm; length 43mm; pressure range 0...16bar; flange PN10/16
