BULG-100-CSN-L-A
BULG-125-DSV-L-A3D
BULG-125-DSV-L-A3D
68.573,00 din.
68.573,00 din.
A-EW08S71X
A-EW08S71X
3.807,00 din.
3.807,00 din.

BULG-100-CSN-L-A

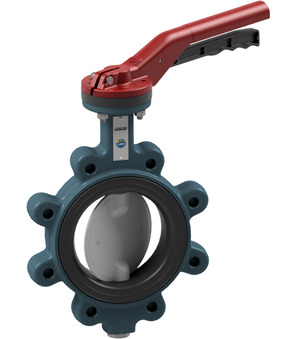

Butterfly valve with hand lever Series BULG-CSN-L-A; ATEX Ex II 2GD h X; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 100mm; Length 52mm; Nominal flange pressure PN10/16; Pressure range 0...16bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.45 Kg
Short Itemnumber:BULG100CSNLA
https://www.stasto.rs/web/image/product.template/160263/image_1920?unique=d9024cc

butterfly valve with hand lever series BULG-CSN-L-A; ATEX Ex II 2GD h X; lug type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 100mm; length 52mm; nominal flange pressure PN10/16; pressure range 0...16bar

60.184,00 din. 60184.0 RSD 60.184,00 din.

cena na zahtev

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
BULG-100-CSN-B-A x 1.0
BULG-100-CSN-B-A
Butterfly valve with bare shaft Series BULG-CSN-B-A; ATEX Ex II 2GD h X; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 100mm; Length 52mm; Nominal flange pressure 10/16bar; Pressure range 0...16bar
Add to Cart
HLBU-040100-A
HLBU-040100-A x 1.0
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
