BULG-100-CSN-R-A3E
BULG-100-CSN-L-A3E
BULG-100-CSN-L-A3E
55.660,00 din.
55.660,00 din.
C3Q-BUW6-200-CSN
C3Q-BUW6-200-CSN
4.818,00 din.
4.818,00 din.

BULG-100-CSN-R-A3E

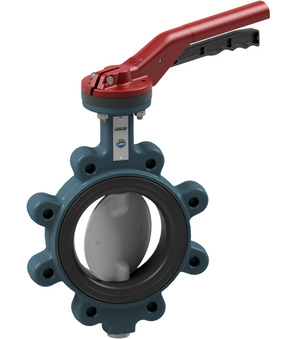

Butterfly valve with hand lever Continuously adjustable Adjustable; Series BULG-CSN-L-A3E; ATEX Ex II 2GD h X; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -25...+100°C; DN 100mm; Length 52mm; Nominal flange pressure PN10/16; Pressure range 0...16bar; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 0.37 Kg
Short Itemnumber:BULG100CSNRA3E
https://www.stasto.rs/web/image/product.template/218159/image_1920?unique=f3e60db

butterfly valve with hand lever continuously adjustable adjustable; series BULG-CSN-L-A3E; ATEX Ex II 2GD h X; lug type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -25...+100°C; DN 100mm; length 52mm; nominal flange pressure PN10/16; pressure range 0...16bar; notch impact test -29°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

57.634,00 din. 57634.0 RSD 57.634,00 din.

cena na zahtev

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
BULG-100-CSN-B-A3E x 1.0
Butterfly valve with bare shaft BULG-100-CSN-B-A3E
Butterfly valve with bare shaft Series BULG-CSN-B-A3E; ATEX Ex II 2GD h X; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -25...+100°C; DN 100mm; Length 52mm; Nominal flange pressure PN10/16; Pressure range 0…16bar; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
Add to Cart
HLBU-040100-A-R x 1.0
HLBU-040100-A-R
Hand lever einstellbar; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG, BULC, BULY; DN 40;50;65;80;100mm
