  6. BULG-125-CSE-G-3C

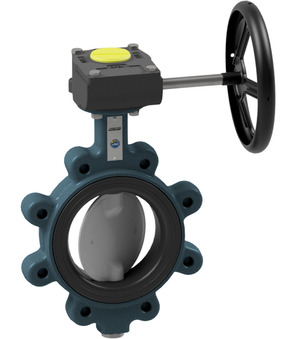

BULG-125-CSE-G-3C

BULG-125-CSE-G-3C

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body made of carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 125mm; Length 56mm; Pressure range 0...16bar; Flange PN10/16

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.514 Kg
Short Itemnumber: BULG125CSEG3C
https://www.stasto.rs/web/image/product.template/151989/image_1920?unique=24fee4a

butterfly valve with manual gear box; lug type; length according to EN558−1 R20; body made of carbon steel A216-WCB; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 125mm; length 56mm; pressure range 0...16bar; flange PN10/16

98.912,00 din. 98912.0 RSD 98.912,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULG-125-CSE-B-3C x 1.0
    Butterfly valve with bare shaft BULG-125-CSE-B-3C
    Butterfly valve with bare shaft Series BULG-B-3C, BULC-B-3C; Lug type; Length According to EN558−1R20; Body made of carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 125mm; Length 56mm; Pressure range 0...16bar; Flange PN10/16
    Add to Cart
    GB02-07/14-01
    GB02-07/14-01 x 1.0
    GB02-07/14-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 14mm
