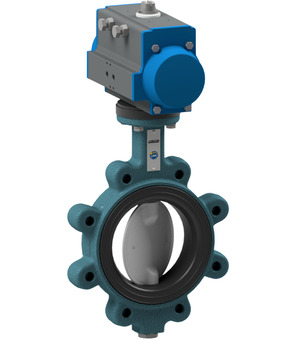

Butterfly valve with pneumatic actuator BULG-125-DPE-D22
Butterfly valve with pneumatic actuator Series BULG-D, BULC-D; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Flange PN10/16; Disc GGG40 verzinkt; Actuator PAD085
Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.74 Kg
Short Itemnumber: BULG125DPED22
Country of origin: Italy
Weight: 13.74 Kg
Short Itemnumber: BULG125DPED22
Butterfly valve with pneumatic actuator Series BULG-D, BULC-D; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Flange PN10/16; Disc GGG40 verzinkt; Actuator PAD085
