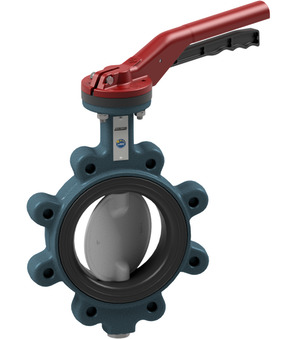

Butterfly valve with hand lever BULY-040-DSE-L

Butterfly valve with hand lever BULY-040-DSE-L

Butterfly valve with hand lever Series BULY-DSE-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 40mm; Length 33mm; Pressure range 0…16bar; Nominal flange pressure ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 2.87 Kg
Short Itemnumber: BULY040DSEL

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.rs/web/image/product.template/149087/image_1920?unique=fcc32fd

butterfly valve with hand lever series BULY-DSE-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 40mm; length 33mm; pressure range 0…16bar; nominal flange pressure ANSI150

17.308,00 din. 17308.0 RSD 17.308,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 40 mm
Length 33 mm
Flange ANSI150
All specifications (5)
Pressure range 0...16 bar
DN 40 mm
Length 33 mm
Flange ANSI150
Brand STASTO
BULY-040-DSE-B x 1.0 Pcs
Butterfly valve with bare shaft BULY-040-DSE-B
Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 40mm; Length 33mm; Pressure range 0…16bar; Nominal flange pressure ANSI150
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
