BULY-040-DSN-G-02

BULY-040-DSN-G-02

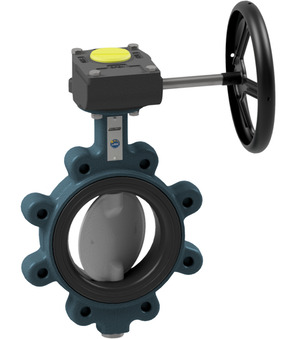

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 40mm; Length 33mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws

Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.174 Kg
Short Itemnumber: BULY040DSNG02
https://www.stasto.rs/web/image/product.template/241467/image_1920?unique=e3fe06a

butterfly valve with manual gear box; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 40mm; length 33mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC

69.008,00 din. 69008.0 RSD 69.008,00 din.

cena na zahtev
