butterfly valve with hand lever BULY-100-DNE-L-3C01

Price:

29.551,00 din.
Butterfly valve with hand lever Series BULY-DSE-L Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Other materiales - A04
  5. Butterfly valve with hand lever Series BULY-DSE-L
  6. BULY-100-DNE-L-3C01

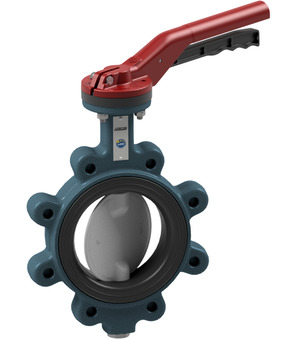

butterfly valve with hand lever BULY-100-DNE-L-3C01
butterfly valve with hand lever BULY-100-BNES-X-3C01
butterfly valve with hand lever BULY-100-BNES-X-3C01
128.862,00 din.
128.862,00 din.
butterfly valve with hand lever BULY-100-DNE-L-3C02
butterfly valve with hand lever BULY-100-DNE-L-3C02
60.830,00 din.
60.830,00 din.

butterfly valve with hand lever BULY-100-DNE-L-3C01

butterfly valve with hand lever series BULY-L-3C01; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc aluminium-bronze; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 100mm; length 52mm; pressure range 0...16bar; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 0.35 Kg
Short Itemnumber:BULY100DNEL3C01
https://www.stasto.rs/web/image/product.template/233878/image_1920?unique=60a4a08

butterfly valve with hand lever series BULY-L-3C01; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc aluminium-bronze; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 100mm; length 52mm; pressure range 0...16bar; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

29.551,00 din. 29551.0 RSD 29.551,00 din.

cena na zahtev

  • DN
  • Length
  • Flange
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
DN 100 mm
Length 52 mm
Flange ANSI150
pressure
Pressure range 0...16 bar
BULY-100-DNE-B-3C01 x 1.0
BULY-100-DNE-B-3C01
butterfly valve with bare shaft series BUL-B-3C01; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc aluminium-bronze; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 100mm; length 52mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
Add to Cart
HLBU-040100-A
HLBU-040100-A x 1.0
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
Add to Cart
​
