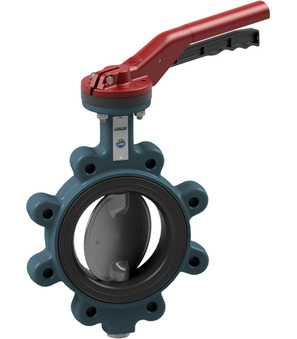

Butterfly valve with hand lever BULY-300-DSE-L-3C01

Butterfly valve with hand lever BULY-300-DSE-L-3C01

butterfly valve with hand lever series BULY-L-3C01; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0-16bar; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Absperrklappe mit Handhebel Serie BULG-L, BULC-L
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Short Itemnumber: BULY300DSEL3C01

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.rs/web/image/product.template/232988/image_1920?unique=b428625

butterfly valve with hand lever series BULY-L-3C01; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0-16bar; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

160.963,00 din. 160963.0 RSD 160.963,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 300 mm
Length 78 mm
Flange PN10
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 300 mm
Length 78 mm
Flange PN10
Brand STASTO

BULY-300-DSE-L-3C01

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Swedish / Svenska
ZIP

Data Sheets

1
BULY-300-DSE-B-3C01 x 1.0 Pcs
Butterfly valve with bare shaft BULY-300-DSE-B-3C01
butterfly valve with bare shaft series BULY-DSE-B-3C01; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
HLBU-250300-A
HLBU-250300-A x 1.0 Pcs
HLBU-250300-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 250;300mm
