BULY-400-CSN-G-A3E

Name: BULY-400-CSN-G-A3E
Brand: STASTO
SKU: BULY-400-CSN-G-A3E
Price: 755208.0 RSD
Availability: InStock

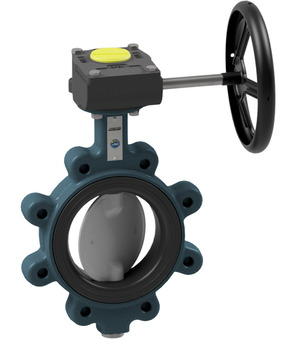

Butterfly valve with manual gear box; ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1 R20; Body Steel 1.0619; Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; DN 400mm; Length 102mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULY400CSNGA3E

butterfly valve with manual gear box; ATEX II 2 G/D Ex h X; lug type; length according to EN558−1 R20; body steel 1.0619; epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure ANSI150; medium temperature -25...+100°C; pressure range 0...16bar; DN 400mm; length 102mm; notch impact test -29°C; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

755.208,00 din. 755208.0 RSD 755.208,00 din.

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BULY-400-CSN-B-A3E x 1.0

Butterfly valve with bare shaft BULY-400-CSN-B-A3E

Butterfly valve with bare shaft Series BULY-B; ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1R20; Body Steel 1.0619; Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -25...+100°C; DN 400mm; Length 102mm; Pressure range 0…16bar; Flange ANSI150; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Add to Cart
